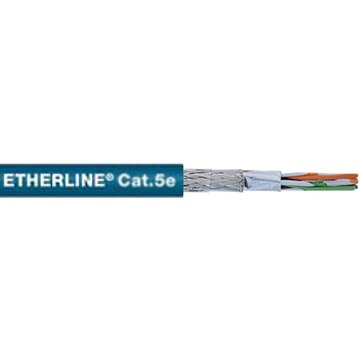

ETHERLINE® P CAT5E 2pair Flex | 2170284

Product Features

• PUR Industrial Ethernet cable Category 5e, Class D for flexible use - verified up to 100 MHz

• High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference

• PUR outer sheath is highly resistant to mineral oils and abrasion

• Halogen-free outer sheath

• Temperature Range
  Fixed installation: -30°C to +80°C
  Occasional Flexing: -5°C to +50°C

• Minimum Bending Radius
  Fixed installation: 8 x OD
  Occasional Flexing: 15 x OD

Design

• Stranded conductor, bare, 7-wire

• Core insulation made of foam skin

• 2 or 4-pair version

• SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening

• PUR Outer sheath

• Colour: water blue (RAL 5021)

Benefits

• Seamless communication from the sensor/actuator level to the Internet

• Screened against interference

• Can be used in dry or damp rooms

• Can be used for Industrial Ethernet in harsh industrial environments

Application Range

• 2pair: 10/100 Mbit/s for Industrial Ethernet

• 4pair: 10/100/1000 Mbit/s for Industrial Ethernet

• Suitable for EtherCAT and EtherNet/IP applications

• For flexible applications (7-wire stranded conductor)

• Only for patch cable applications (max. 60 m)

Norm References / Approvals

• Flame-retardant according IEC 60332-1-2

• Halogen-free according to VDE 0472-815
