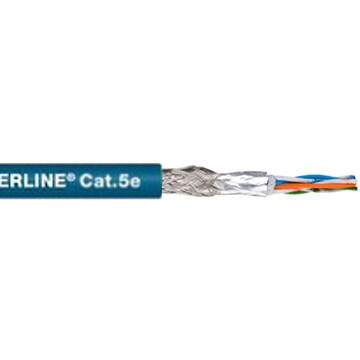

ETHERLINE® P CAT5e 4pair Solid | 2170297

Product Features

• PUR Industrial Ethernet cable Category 5e, Class D for fixed installation - verified up to 100 MHz

• High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference

• PUR outer sheath is highly resistant to mineral oils and abrasion

• Halogen-free outer sheath

• Temperature Range
  Fixed installation: -30°C to +80°C;

• Minimum Bending Radius
  Fixed installation
  2 pair cable: 7.5 x OD
  4 pair cable: 8.0 x OD

Design

• Solid copper conductor

• Core insulation made of foam skin

• 2 or 4-pair version

• SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening

• PUR Outer sheath

• Colour: water blue (RAL 5021)

Benefits

• Seamless communication from the sensor/actuator level to the Internet

• Screened against interference

• Can be used in dry or damp rooms

• Can be used for Industrial Ethernet in harsh industrial environments

Application Range

• 2pair: 10/100 Mbit/s for Industrial Ethernet

• 4pair: 10/100/1000 Mbit/s for Industrial Ethernet

• Suitable for EtherCAT and EtherNet/IP applications

• Industrial use

• Fixed Installation

Norm References / Approvals

• Flame retardant acc. to IEC 60332-1-2

• Halogen-free according to VDE 0472-815
