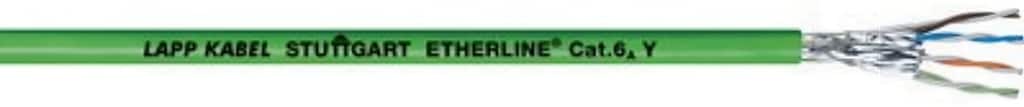

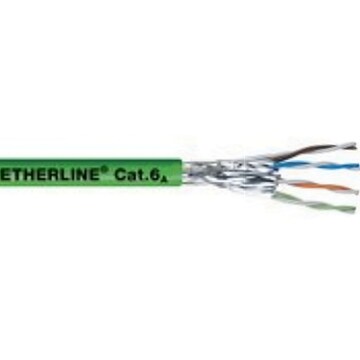

ETHERLINE® H CAT6A 4pair Solid | 2170466
Product Features
- High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference
- Robust, halogen-free outer sheath
- Temperature Range
Fixed installation: -25°C to +80°C
- Minimum Bending Radius
Fixed installation: 10 x OD
Design
- Solid bare copper wire AWG22
- Core insulation made of polyethylene (PE)
- S/FTP: copper braid as overall screening and pair screening with aluminium compound foil
- Outer sheath made from Halogen Free compound
- Colour: green (based on RAL 6018)
Benefits
- Seamless communication from the sensor/actuator level to the Internet
- Screened against interference
- Can be used in dry or damp rooms
- Can be used for Industrial Ethernet in harsh industrial environments
- 4pair: 100Mbit/s up to 10Gbit/s for Industrial Ethernet
Application Range
- Wiring of machines, tools, devices, appliances and control cabinets
- Suitable for EtherCAT and EtherNet/IP applications
- Max. cable length for 100Mbit/s is 100m
Max. cable length for 10Gbit/s is 100m
Norm References / Approvals
- For industrial secondary and tertiary cabling according to EN 50173-3 ISO/IEC 24702
| General Data | |
|---|---|
| Product Type | Cable |
| Colour | Green |
| Min Temperature | -25 |
| Max Temperature | 80 |
| Electrical Data | |
|---|---|
| Cable Makeup | 4X2XAWG22/1 |
| Number of Cores | 8 |
| Conductor Size (mm2) | AWG22 |
| Includes Earth | No |
| Screening Type | Foil Pair and Braided Overall Screens |
| Rated Voltage | 125V |
| Mechanical Properties | |
|---|---|
| Outer Sheath | HF Compound |
| Cable Shape | Round |
| Outside Diameter | 8.7 |
| Core Identification | Coloured Cores |
| Cable Weight (kg/m) | 0.099 |
