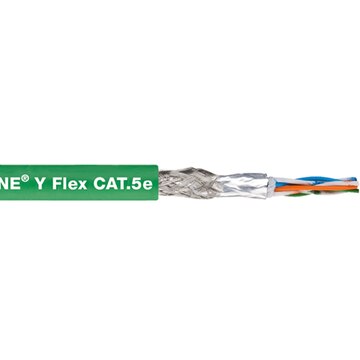

ETHERLINE® Y CAT5e 4pair Flex | 2170486

Product Features

• Industrial Ethernet cable Category 5e, Class D for flexible use - verified up to 100 MHz

• High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference

• Temperature Range
  Fixed installation: -40°C to +80°C
  Occasional Flexing: -10°C to +70°C

• Minimum Bending Radius
  Fixed installation: 8 x OD
  Occasional Flexing: 15 x OD

Design

• Stranded conductor, bare copper, 7-wire

• Core insulation made of foam skin

• SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening

• PVC outer jacket, green (based on RAL 6018)

Benefits

• Seamless communication from the sensor/actuator level to the Internet

• Screened against interference

• Can be used in dry or damp rooms

• Can be used for Industrial Ethernet in harsh industrial environments

Application Range

• 2pair: 10/100 Mbit/s for Industrial Ethernet

• 4pair: 10/100/1000 Mbit/s for Industrial Ethernet

• Suitable for EtherCAT and EtherNet/IP applications

• For flexible applications (7-wire stranded conductor)

• Only for patch cable applications (max. 60 m)

Norm References / Approvals

• PVC version with UL/CSA (CMX) certification

• Flame-retardant according IEC 60332-1-2
