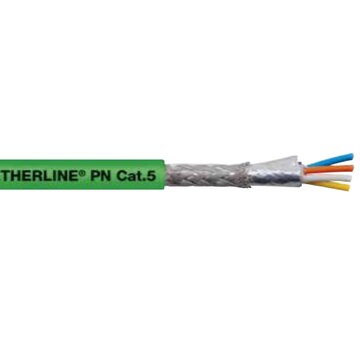

ETHERLINE® PN CAT5 2pair Flex | 2170886

Product Features

• Fast Connect (FC) cable design

• Flame-retardant according to CSA FT4 UL Vertical-Tray Flame Test

• CAT.5-Performance

• Temperature Range
  Fixed installation: -40°C to +80°C
  Moved: -20°C to +60°C

• Minimum Bending Radius
  Flexing: 7 x OD
  Fixed installation: 3 x OD

Product Features

• Fast Connect (FC) cable design

• Flame-retardant according to CSA FT4 UL Vertical-Tray Flame Test

• CAT.5e-Performance

• Temperature Range
  Fixed installation: -40°C to +80°C
  Moved: -30°C to +50°C

• Minimum Bending Radius
  Flexing: 7.5 x OD
  Fixed installation: 3 x OD

Design

• Stranded conductor, tinned, 7-wire

• Core insulation: polyolefin

• Star quad

• Inner sheath made of PVC

• Overall screening with copper braid and plastic-laminated aluminium foil

• PVC jacket material

• Colour: green (based on RAL 6018)

Benefits

• For PROFINET applications type B

• Screened against interference

• Can be used in dry or damp rooms

• Can be used for Industrial Ethernet in harsh industrial environments

• 2pair: 10/100 Mbit/s for Industrial Ethernet

Application Range

• For industrial secondary and tertiary cabling according to EN 50173-3 ISO/IEC 24702

• Wiring of machines, tools, devices, appliances and control cabinets

• Max. cable lenght for 100 Mbit/s is 85 m

• Suitable for EtherCAT and EtherNet/IP applications

• For flexible applications (7-wire stranded conductor)

Norm References / Approvals

• The cable is UL/CSA-certified (CMG)

• ETHERLINE ® PN Cat.5 Y FLEX FC: ECOLAB ®
