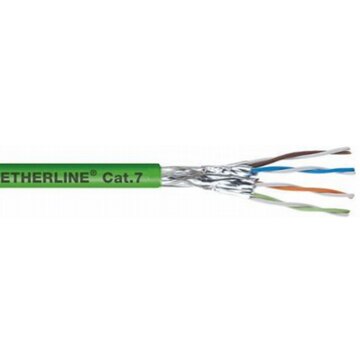

ETHERLINE® CAT7 4pair Flex | 2170934

Product Features

• High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference

• PUR outer sheath is highly resistant to mineral oils and abrasion

• Robust, halogen-free outer sheath

• Temperature Range
  Fixed installation: -50°C to +80°C
  Flexing: -40°C to +80°C

• Minimum Bending Radius
  Fixed installation: 4 x OD
  Flexing: 10 x OD

Design

• Stranded conductor, bare, 7-wire

• Core insulation made of polyethylene (PE)

• S/FTP: copper braid as overall screening and pair screening with aluminium compound foil

• Outer sheath made of PUR

• Colour: green (based on RAL 6018)

Benefits

• Screened against interference

• Can be used in dry or damp rooms

• Can be used for Industrial Ethernet in harsh industrial environments

• 4pair: 100Mbit/s up to 10 Gbit/s for Industrial Ethernet

Application Range

• Wiring of machines, tools, devices, appliances and control cabinets

• Max. cable length for 100 Mbit/s is 60 m
  Max. cable length for 10 Gbit/s is 60 m

• Suitable for EtherCAT and EtherNet/IP applications

Norm References / Approvals

• Electrical requirements acc. to IEC 61156-6

• AWM certification for USA and Canada

• UL AWM Style 21238

• Flame retardant acc. to IEC 60332-1-2
