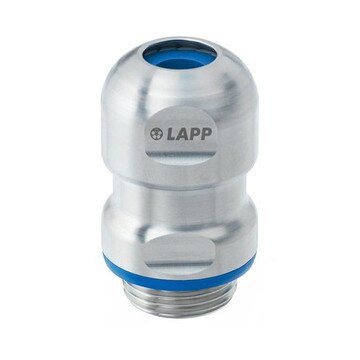

Stainless Gland M12 4-6mm | 53105100

Features

• Material and shape provide an easy and safe cleaning

• Chemical and Corrosion-resistant

• Mechanical resistance

• IP Rating: IP68 – 10 bar, IP69 test acc. to EN 60529

• Temperature range: -20 °C up to +100 °C

Approvals

• ECOLAB® Industry standard in the field of professional cleaning and disinfection in the food and beverage industry

• FDA 21 CFR 177.2600 Special sealing element for food and beverage industry in North America

• DIN EN 1672-2 Guideline for the design of machinery

• DIN EN ISO 14 159 Security of machinery Hygienic requirements for the design of machinery

• EHEDG (TYPE EL Class I AUX) Hygienic design for machinery and components

Benefits

• Hygienic Design for ideal cleaning results

• Smooth surfaces with no edges prevent the accumulation of fluids

• Blue sealing material clearly distinguishable from foodstuffs

• Complete assembly is easily mounted from the outside

Applications

• Ideal for hygienic critical areas, resistant, edge-free, robust and reliable

• For use in product zone

• Food machinery, equipment and components

• Pharmaceutical industry

Materials

• Body: Stainless steel – V4A (1.4404 / 316L)

• Cap nut: Stainless steel – V4A (1.4404 / 316L)

• Insert: Polyamide, blue

• Seals: FKM – conform to FDA 21 CFR 177.2600
