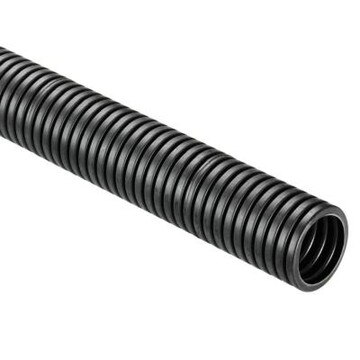

10mm Conduit Easiflex | CF-07B.50
Features
- Temperature range -40°C to 105°C long term, (up to 160°C short term)
- Very good UV resistance and weathering characteristics
- Self-extinguishing
Benefits
- Good impact resistance
- Good flexibility
- Fine profile at large sizes
Applications
- General Applications
- Machine Building
Materials
- High-grade, specially formulated polyamide 6
- Free from halogens and cadmium
- RoHS and REACH compliant
Compatibility
- PMAFIX Pro, PMAFIX, PMA Smart Line fittings
- PMAGRIP flange
- PMA accessories
| General Data | |
|---|---|
| Product Type | Conduit |
| Product Subtype | Standard Duty |
| Colour | Black |
| Conduit Profile | Corrugated Fine (T) |
| Min Temperature | -40 |
| Max Temperature | 105 |
| Volumetric Weight (kg/roll) | 2.2 |
| Roll Size | 50m Rolls |
| Product Description | |
|---|---|
| Conduit Size (NW) | 07 |
| Conduit Size Metric | 10 |
| Inside Diameter (mm) | 6.2 |
| Outside Diameter (mm) | 10.0 |
| Static Bending Radius (mm) | 15.0 |
| Features | |
|---|---|
| Halogen Free | Yes |
| UV Resistant | Yes |
