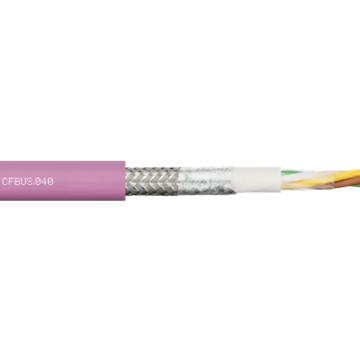

Chainflex CAT5 4x0.25 CY TPE |CFBUS.040

Benefits

• Chainflex cable designed for dynamic echain applications

• Oil resistant (DIN EN 60811-404)

• Bio Oil resistant

• Flame retardant (IEC 60332-1-2)

• For heaviest duty applications

• Hydrolysis and microbe resistant

• Shielded

Dynamic Infomation

• Bend Radius, Moving: minimum 10 x OD
  (At -35 °C to +70 °C for 5million strokes) see service life table.

• Bend Radius, Fixed: minimum 5 x OD
  (At -55 °C to +70 °C)

• Velocity Max: Unsupported 10m/s, Gliding 6m/s.

• Acceleration Max: 100m/s²

Service Life Table

Product Features

• Gusset-filled extruded halogen free TPE mixture

• Conforms to relevant bus specification

• Especially bending resistant fine-wire stranded conductors

• Extruded halogen free TPE mixture

Application Range

• For heavy-duty applications

• Unsupported travels and up to 400m and more for gliding applications

• Almost unlimited resistance to oil, also with bio-oils

• No torsion

• Indoor and outdoor applications without direct sun radiation

• Low-temperature applications

• Storage and retrieval units for high-bay warehouses, machining units/machine tools, quick handling, cleanroom, semiconductor insertion, outdoor cranes

Design

• Fine-wire stranding made of bare copper wires

• Core insultation to bus specification

• Core structure to bus specification, see datasheet.

• Core identification to bus specification.

• TPE Inner Jacket

• Overall Shield: Extremely bending-resistant braiding made of tinned copper wires.
  Coverage linear approx. 70%, optical approx. 90%

• Outer Jacket: TPE Violet (similar to RAL 4001)
  Low-adhesion, extremely abrasion-resistant and highly flexible

Norm References / Approvals

• UL/CSA. CE.

• Lead Free. Following EU guideline (RoHS) 2002/95/EC

• Clean Room. According to ISO Class 2. ISO 14644-1
