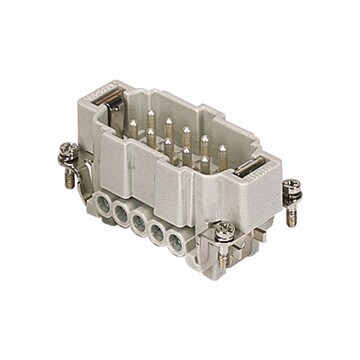

Male Insert 16A 10+E | CNEM 10 T
Benefits
- Reliable and easily disconnectable
- Robust and ready for industrial use
- Screw type contacts, no crimping tools required
- Suitable for use with industry standard housings
Application Range
- Electrical and electronic machinery
- Control units
- Electrical panels
- Control equipment
- Industrial environments
Product Features
- CNE series connection technology is screw-type, requiring very simple and popular tools, like a flat blade screwdriver or a Ph0 cross-headed screwdriver.
- with pressure (protection) plate, for unprepared conductors, to preserve conductor strands from being cut from the screw head.
- Series CNE connectors are polarized against 180° incorrect mating by a system of keys and keyways along the contour of their mating faces.
- Suitable for >500 mating cycles
Materials
- Made of self-extinguishing thermoplastic resin UL 94V-0
- contact resistance: ≤ 1 mΩ
- Built-in silver plated contacts
Norm References / Approvals
- UL certified for USA and Canada, rated voltage according to UL/CSA: 600V
| General Data | |
|---|---|
| Product Type | Connector |
| Product Subtype | Insert |
| Product Description | |
|---|---|
| Number of Poles | 10+E |
| Gender | Male |
| Contact Style | Screw |
| Insert Size | 57.27 |
| Rated Voltage | 500V |
| Rated Current | 16A |
Please check the catalogue page to find matching inserts and housings.
