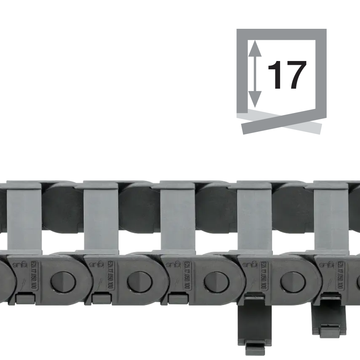

Chain E2i.17

Chain Link Dimensions

Inner Width	Outer Width	Weight
Bi	Ba	kg/link
15mm	26.1mm	0.34
25mm	36.1mm	0.37
38mm	49.1mm	0.41
50mm	61.1mm	0.45
63mm	74.1mm	0.50
80mm	91.1mm	0.55
100mm	111.1mm	0.62

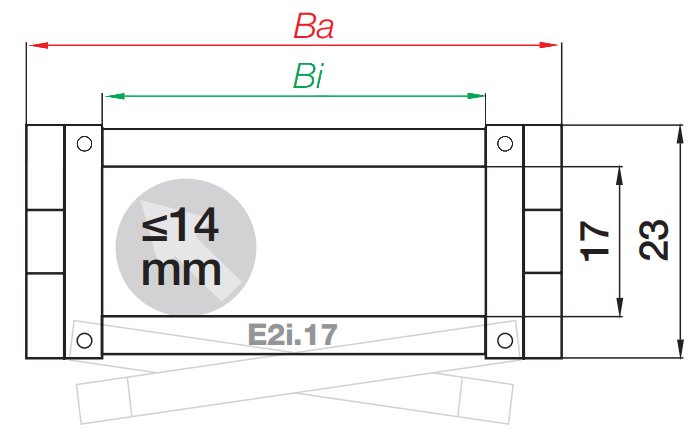

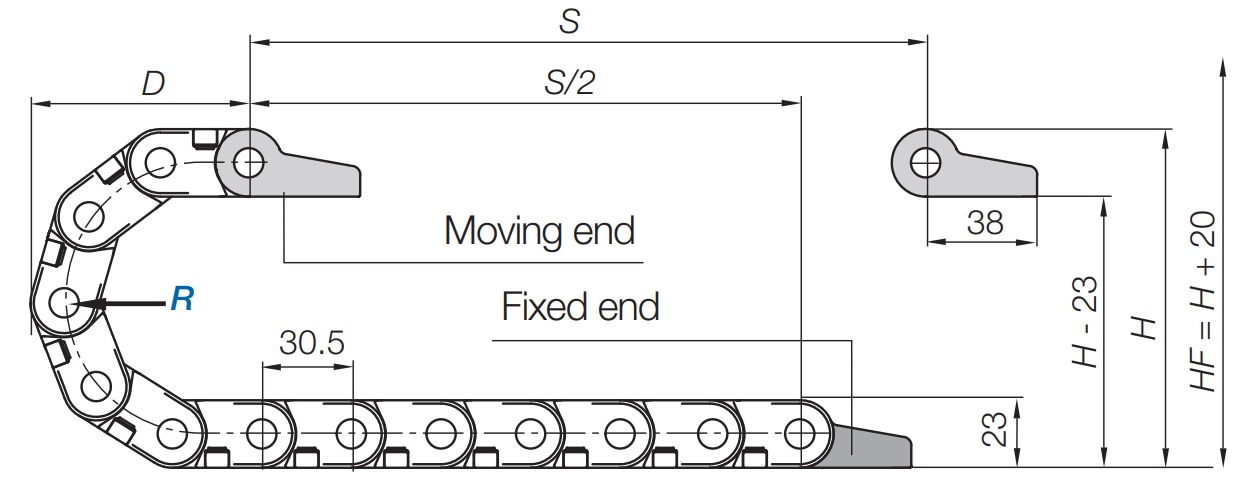

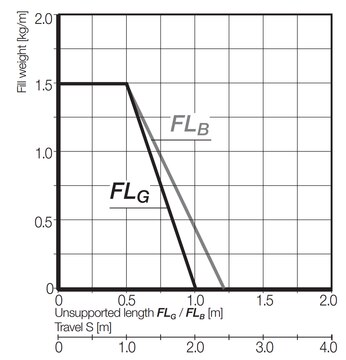

Installation Dimensions

Features and Benefits

• Long service life, particularly quiet running and easy filling and installation.

• Easy to open with flat head screwdriver

• Great strength for unsupported lengths

• Long service life for gliding applications

• Integrated grid for interior separation in 2.5mm steps

• Cable-friendly due to smooth interior

• Quiet operation due to integrated brake

• Complete interior separation range

Mounting Brackets

Pivoting	Locking
Bracket can pivot freely Used for horizontal applications	Bracket can't pivot Used for vertical applications

Width Index	Pivoting Bracket	Locking Bracket
Bi (mm)	with Tiewraps	with Tiewraps
15	1015.34PZ	1015.12PZ
25	1025.34PZ	1025.12PZ
38	1038.34PZ	1038.12PZ
50	1050.34PZ	1050.12PZ
63	105.34PZ	105.12PZ
80	106.34PZ	106.12PZ
100	107.34PZ	107.12PZ

Note: Brackets are sold as a pair, so only 1 set is required per chain

Separators and Shelves

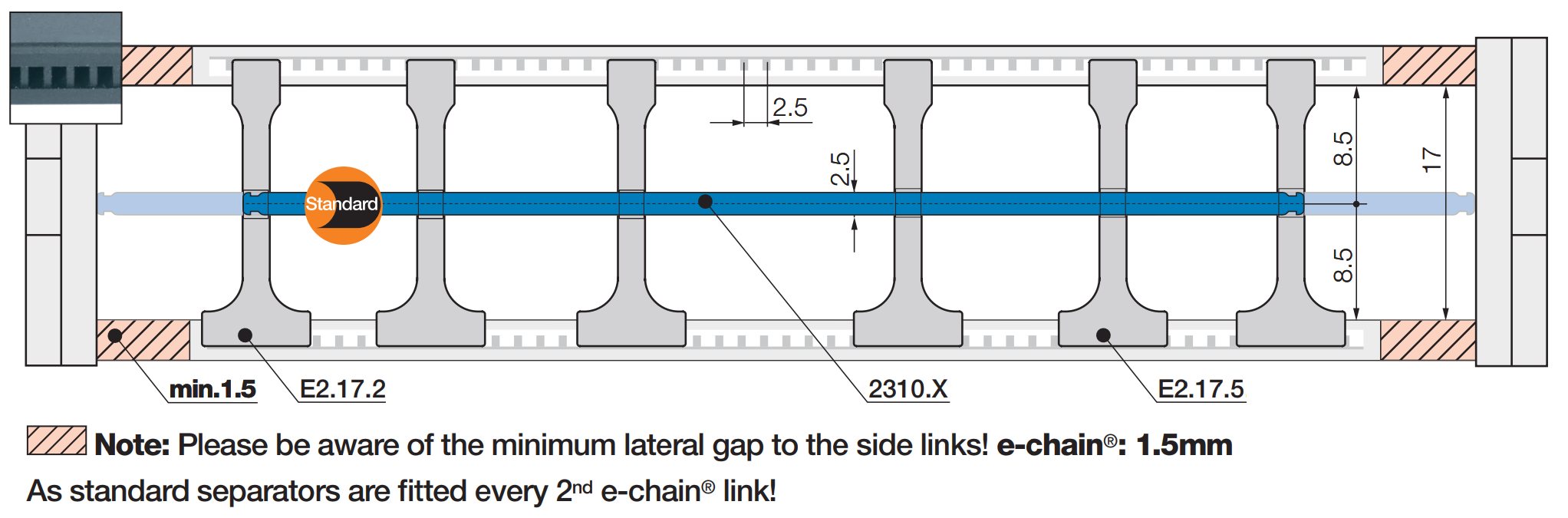

Separators are used to keep the cables within the chain from crossing over each other.
In most cases they are installed in every 2nd link.

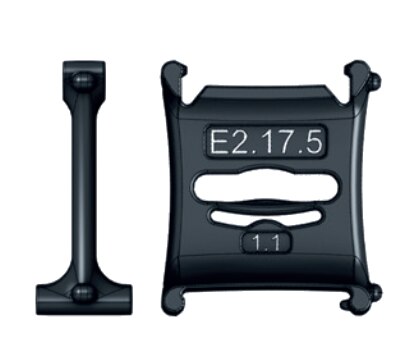

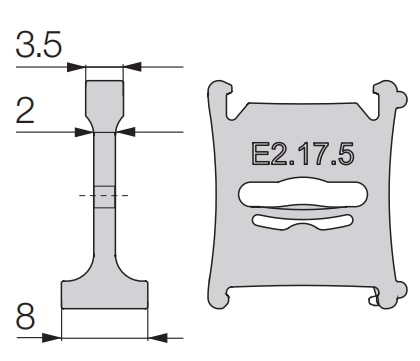

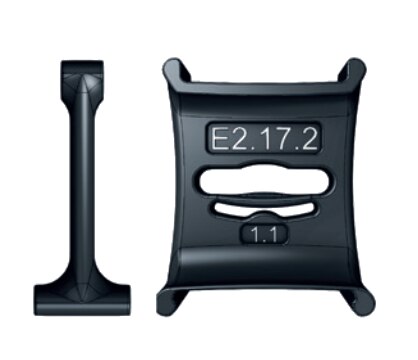

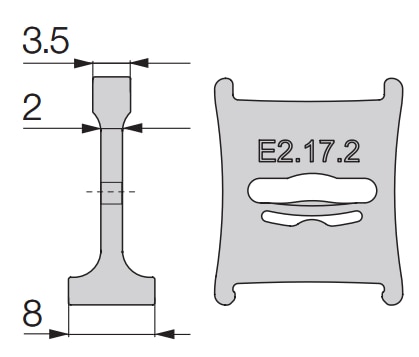

Separator narrow top E2.17.2	Locking Separator E2.17.5
25mm Shelf 2300.025	38mm Shelf 2300.038
57mm Shelf 2300.057	77mm Shelf 2300.077
87mm Shelf 2300.087	100mm Shelf 2300.100
