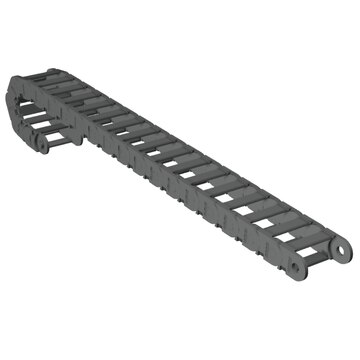

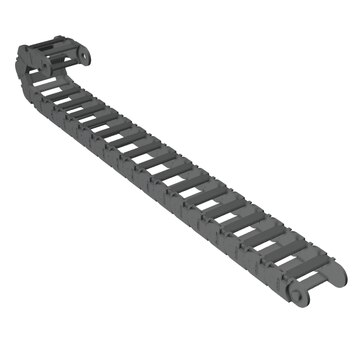

Chain E2i.21

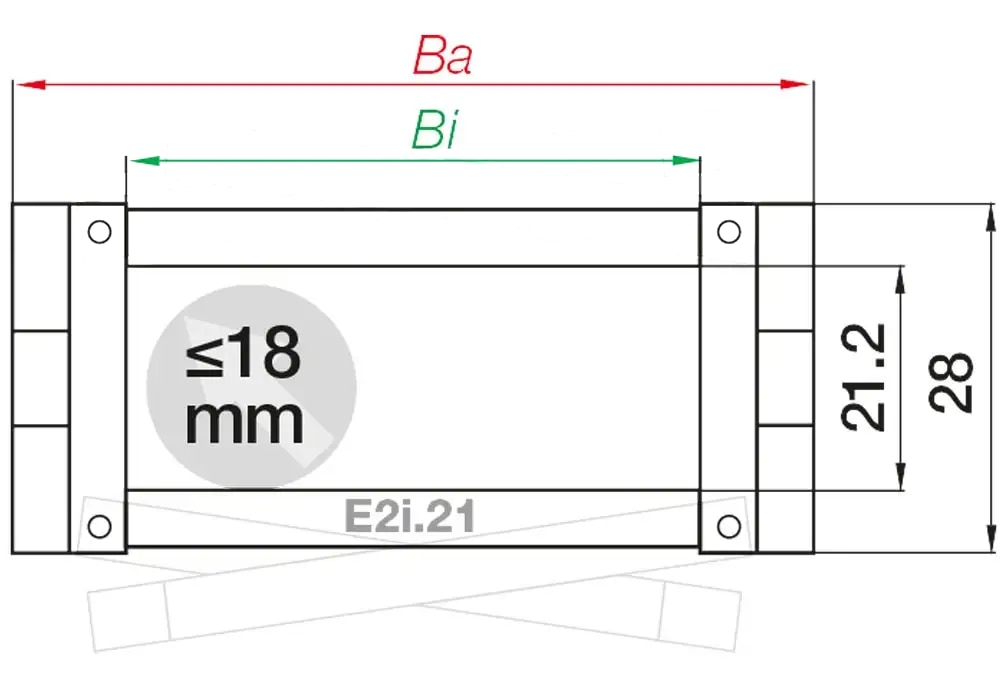

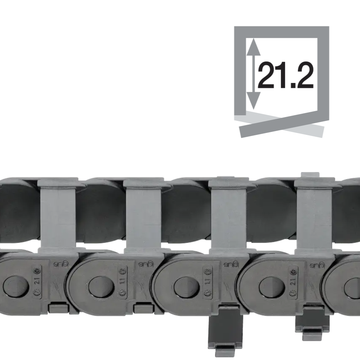

Chain Link Dimensions
| Inner Width | Outer Width | Weight |
| Bi | Ba | kg/link |
| 15mm | 28.8mm | 0.56 |
| 20mm | 33.8mm | 0.58 |
| 25mm | 38.8mm | 0.60 |
| 38mm | 51.8mm | 0.65 |
| 50mm | 63.8mm | 0.69 |
| 68mm | 81.8mm | 0.75 |
| 80mm | 93.8mm | 0.81 |
| 100mm | 113.8mm | 0.88 |
| 125mm | 138.8mm | 0.97 |

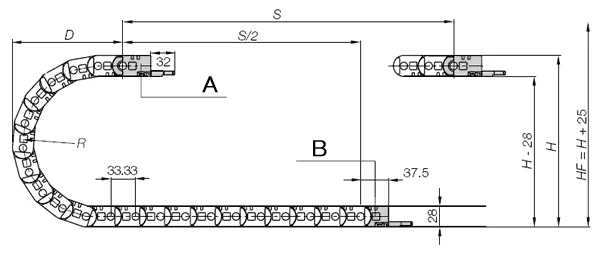

Installation Dimensions
| Bending Radius | System Height | Parking Length | Bend Length | Links Required |
| R (mm) | H (mm) | D (mm) | K (mm) | S = 2m |
| 35 | 98 | 99 | 180 | 36 |
| 38 | 104 | 102 | 190 | 37 |
| 48 | 124 | 112 | 220 | 38 |
| 63 | 154 | 127 | 265 | 39 |
| 75 | 178 | 139 | 305 | 40 |
| 100 | 228 | 164 | 385 | 43 |
| 125 | 278 | 189 | 460 | 45 |
| 145 | 318 | 209 | 525 | 48 |
| 180 | 388 | 244 | 635 | 51 |

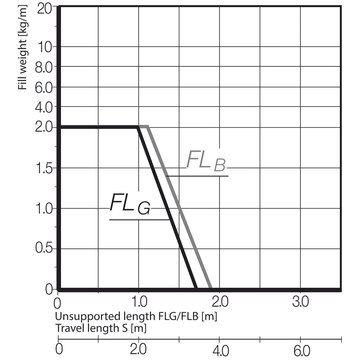

The required clearance height: HF = H + 25mm (with 1.5kg/m fill weight)
Features and Benefits
- Long service life, particularly quiet running and easy filling and installation.
- Easy to open with flat head screwdriver
- Great strength for unsupported lengths
- Long service life for gliding applications

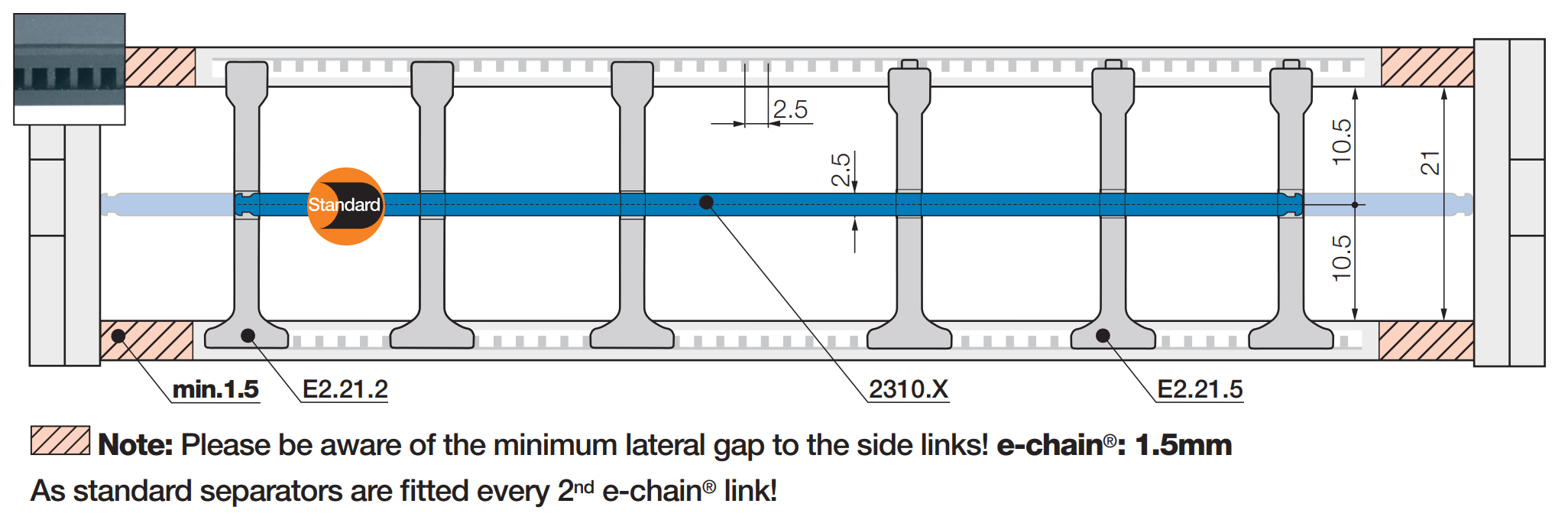

- Integrated grid for interior separation in 2.5mm steps
- Cable-friendly due to smooth interior
- Quiet operation due to integrated brake
- Complete interior separation range
Mounting Brackets
| Pivoting | Locking |
 |  |
 |  |
| Bracket can pivot freely Used for horizontal applications | Bracket can't pivot Used for vertical applications |
| Width Index | Pivoting Bracket | Locking Bracket |
| Bi (mm) | with Tiewraps | with Tiewraps |
| 15 | 14015.34PZ | 14015.12PZ |
| 20 | 14020.34PZ | 14020.12PZ |
| 25 | 14025.34PZ | 14025.12PZ |
| 38 | 14038.34PZ | 14038.12PZ |
| 50 | 14050.34PZ | 14050.12PZ |
| 68 | 14068.34PZ | 14068.12PZ |
| 80 | 14080.34PZ | 14080.12PZ |
| 100 | 14100.34PZ | 14100.12PZ |
| 125 | 14125.34PZ | 14125.12PZ |
Note: Brackets are sold as a pair, so only 1 set is required per chain

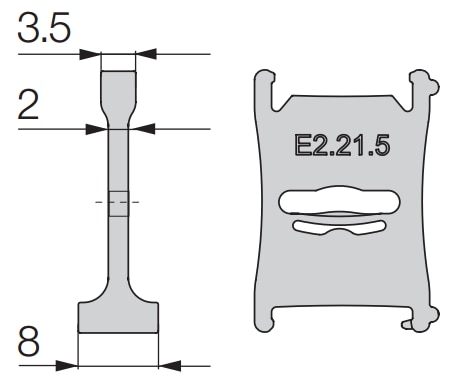

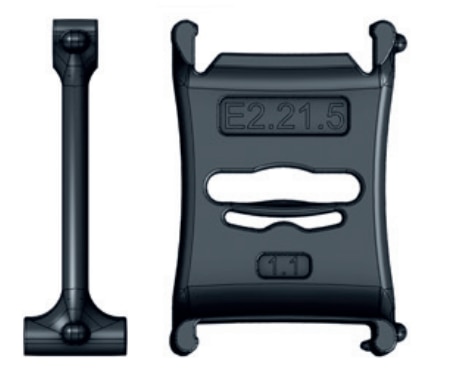

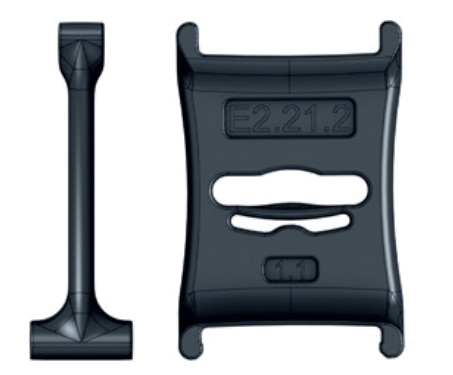

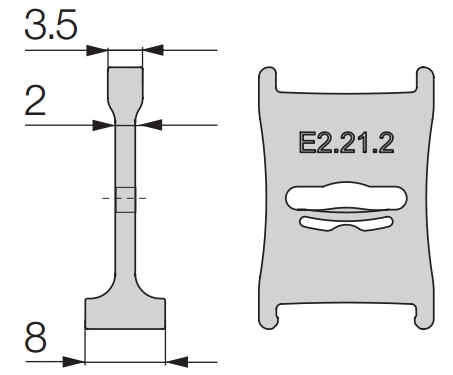

Separators and Shelves
| General Data | |
|---|---|
| Product Type | Chain |
| Product Subtype | Energy Chain |
| Colour | Black |
