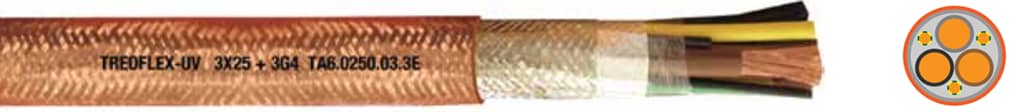

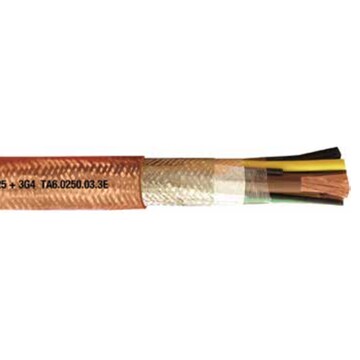

Treoflex UV 3x10+3G1.5 | TA6.0100.03.3E

Benefits

• VSD Cable for motor power supply

• Shielded

• Transparent orange sheath

• UV resistant

Design

• Fine-wire stranded bare copper conductors, class 5

• Cross-linked polyethylene core insulation, XLPE

• Black, brown, grey power cores
  with 3 smaller green/yellow cores

• Polyester tape covered with a layer of foil

• Tinned copper braided screen

• Transparent orange special PVC sheath

Features

• Multi-stranded conductors, XLPE insulation

• UV resistant outer sheath made of a special type of PVC

• Aluminium foil and tinned copper braid screens

• Self-extinguishing and flame retardant (as per PN-EN60332-1)

• Symmetric conductor construction 3 core + 3 earth

Application Range

• Used to supply power to motors from frequency converters while maintaining full electromagnetic compatibility (EMC)

• For fixed installation and movable connections in industrial equipment, process lines, and machines operating in dry and damp rooms.

Relevant Standards

• AS/NZS 5000.1

• AS/NZS 1125

• AS/NZS 3808
