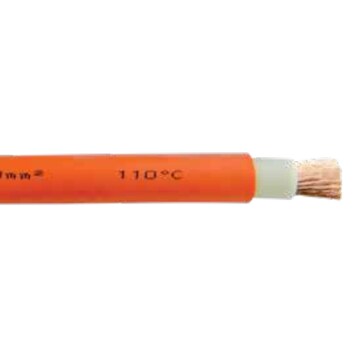

Treoflex SDI 25mm² | TA7.0250.01.OE
Benefits
- LSHF Low Smoke, Halogen Free (LSZH, LS0H)
- Flame retardant (IEC60332-1)
- UV Stabilised
- Oil resistant
Design
- Extra-fine strands of bare copper conductor, class 6
- X-HF-110 core insulation, white, LSHF
- Orange HFS-110-TP outer sheath, LSHF
Features
- Bare Copper conductors, extra fine stranding, Class 6
- LSHF 110ºC outer sheath
- 0.6/1kV Nominal Voltage
- Bend Radius, fixed: minimum 6 x OD
Application Range
- Flexible SDI power cable for use in switchboards, busbars, transformers, welding leads, battery chargers
- Suitable for fixed and movable installations
Relevant Standards
- AS/NZS 5000.1
- AS/NZS 1125
- AS/NZS 3808
| General Data | |
|---|---|
| Product Type | Cable |
| Colour | Orange |
| Min Temperature | -40 |
| Max Temperature | 110 |
| Electrical Data | |
|---|---|
| Cable Makeup | 1X25 |
| Number of Cores | 1 |
| Conductor Size (mm2) | 25 |
| Includes Earth | No |
| Screening Type | Unscreened |
| Rated Voltage | 600/1000V |
| Mechanical Properties | |
|---|---|
| Outer Sheath | HFS-110-TP |
| Cable Shape | Round |
| Outside Diameter | 11.9 |
| Core Identification | Single core |
| For Energy Chain | No |
| Cable Weight (kg/m) | 0.276 |
