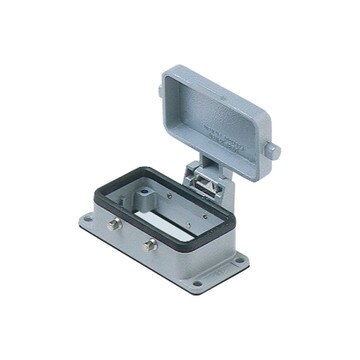

Panel mount base 4 Pegs | CHI 10 CS
Benefits
- Reliable and easily disconnectable
- Robust and ready for industrial use
- Suitable for use with a range of inserts
Application Range
- Electrical and electronic machinery
- Control units
- Electrical panels
- Control equipment
- Industrial environments
Norm References / Approvals
- UL certified for USA and Canada for Type 4, 4X (outdoor use) and 12 (indoor use) degrees of protection (enclosure type rating), marked on the packaging.
Product Features
- IP65 when mated and locked with the closing levers.
- Ambient temperature range: -40 °C / +125 °C
Materials
- Made of die cast aluminium alloy
- With epoxy-polyester thermosetting powder coating
- Gaskets in anti-aging, oil-resistant, grease-resistant and fuel-resistant vinyl nitrile elastomer
- Locking device with levers, springs and pins in stainless steel
- Lever handles in self-extinguishing thermoplastic material reinforced with glass fibres
| Product Description | |
|---|---|
| Connector Form | Base |
| Cable Entry Style | Cutout |
| Housing Size | Standard 10 "57.27" |
| Connection Style | Double: 4 Pegs |
| Suitable Insert Size | 57.27 |
| Housing Series | Standard C-TYPE |
| General Data | |
|---|---|
| Product Type | Connector |
| Product Subtype | Housing |
| IP Rating (when locked) | IP65 |
| Weight (kg) | 0.1425 |
| Pack Size | 20 |
| Features | |
|---|---|
| Mating Gasket | Yes |
| Has Cover | Yes |
Please check the catalogue page to find matching inserts and housings.
